Kylin v10 编译安装Tengine

发表于： 2026/01/01 更新于： 2026/01/01 分类于： web

字数： 1132 阅读：≈ 3分钟浏览：评论：

温馨提醒

编译安装 Tengine 3.1.0

安装依赖

1
2
3
4
5
# CentOS
yum install -y jemalloc jemalloc-devel zlib zlib-devel

# Ubuntu
apt install -y libjemalloc-dev zlib1g-dev libpcre3 libpcre3-dev

编译

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
./configure \
--prefix=/usr/local/tengine \
--conf-path=/etc/nginx/nginx.conf \
--error-log-path=/var/log/nginx/error.log \
--http-log-path=/var/log/nginx/access.log \
--pid-path=/run/nginx.pid \
--user=nginx \
--group=nginx \
--with-http_ssl_module \
--with-pcre-jit \
--with-pcre \
--with-http_v2_module \
--with-http_realip_module \
--with-http_stub_status_module \
--with-stream \
--with-stream_ssl_module \
--with-stream_ssl_preread_module \
--with-stream_sni \
--with-jemalloc \
--with-file-aio \
--with-threads \
--with-compat \
--with-ipv6 \
--with-http_auth_request_module \
--with-http_dav_module \
--add-module=./modules/ngx_http_upstream_dynamic_module \
--add-module=./modules/ngx_http_upstream_dyups_module \
--add-module=./modules/ngx_http_upstream_check_module

make && make install

动态管理 upstream

ngx_http_upstream_dynamic_module

运行期动态探活/权重/下线 upstreab节点（自动）

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
# 配置示例

upstream backend {
    server 10.0.0.1:8080 weight=5 max_fails=3 fail_timeout=10s;
    server 10.0.0.2:8080 weight=5 max_fails=3 fail_timeout=10s;
    server 10.0.0.3:8080 backup;
}

server {
    listen 80;

    location / {
        proxy_pass http://backend;
        proxy_connect_timeout 3s;
        proxy_read_timeout 10s;
    }
}

max_fails=3 			# 连续失败3次
fail_timeout=10s		# 10秒内失败就下线
timeout 过后			   # 自动重试上线

ngx_http_upstream_dyups_module

通过 http 接口，动态新增 / 修改 upstream 配置

支持：新增 upstream、修改 server 列表、删除 upstream、查询 upstream

必须配置共享内存，否则不能使用，如果没有 zone，dyups 直接失效

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
# 示例配置

    upstream test_backend {
        zone backend 64k;
        server 127.0.0.1:8080 weight=5 max_fails=3 fail_timeout=10s;
        server 127.0.0.1:8081 weight=5 max_fails=3 fail_timeout=10s;
    }

    server {
        listen 127.0.0.1:9999;

        location /upstream {
            dyups_interface;
            allow 127.0.0.1;
            deny all;
        }
    }

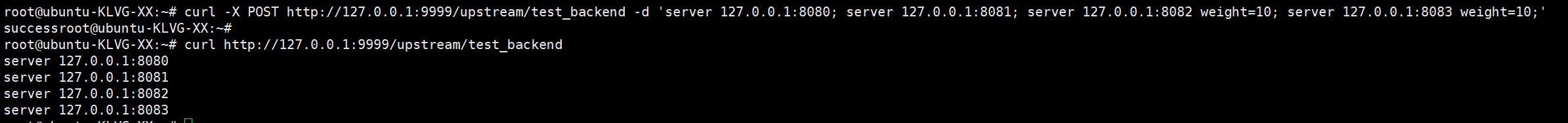

查看当前 upstream

curl http://127.0.0.1:9999/upstream/test_backend

新增/修改 upstream（新增upstream时，在执行命令时，一定要添加上旧的节点，否则就是修改节点）

curl -X POST http://127.0.0.1:9999/upstream/test_backend -d 'server 127.0.0.1:8080; server 127.0.0.1:8081; server 127.0.0.1:8082 weight=10; server 127.0.0.1:8083 weight=10;'

删除 upstream

curl -X DELETE http://127.0.0.1:9999/upstream/test_backend

健康检查模块

ngx_http_upstream_check_module

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
# 示例配置

upstream test_backend {
    server 127.0.0.1:8080 max_fails=3 fail_timeout=10s;
    server 127.0.0.1:8081 max_fails=3 fail_timeout=10s;

    check interval=5000 rise=2 fall=3 timeout=1000 type=http;
    check_http_send "GET /health HTTP/1.0\r\n\r\n";
    check_http_expect_alive http_2xx http_3xx;
}

interval 						# 健康检查间隔，单位 ms
rise 							# 节点连续健康检查成功次数达到该值后标记为 UP
fall 							# 节点连续健康检查失败次数达到该值后标记为 DOWN
timeout 						# 每次健康检查的超时时间，单位 ms
type 							# 检测类型，可以是 tcp 或 http
check_http_send 				# 健康检查发送的 HTTP 请求
check_http_expect_alive 		# 判断节点健康的 HTTP 返回码，支持 http_2xx、http_3xx

1
2
3
4
5
6
7
# TCP 健康检查示例，TCP 检查只判断端口是否连通，不关心 http 返回值
upstream tcp_backend {
    server 127.0.0.1:9000;
    server 127.0.0.1:9001;

    check interval=3000 rise=2 fall=2 timeout=1000 type=tcp;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
server {
    listen	8080;

    location /status {
        check_status; 				# 启用模块
        access_log off; 			# 不记录日志
        allow 192.168.0.0/24;
        deny all;
    }
}

http://localhost:8080/status?format=json

http://localhost:8080/status?format=csv

QUIC/HTTP 3

HTTP/3 必须 TLS 1.3，OpenSSL 版本 >= 1.1.1

提前下载并编译 XQUIC

1
2
3
4
5
6
git clone https://github.com/ngtcp2/ngtcp2.git xquic
cd xquic
mkdir build && cd build
cmake ..
make -j$(nproc)
sudo make install

编译完成后，记住库文件 include 和头文件 lib 路径

编译

1
2
3
4
5
6
./configure \
...
--add-module=./modules/ngx_http_xquic_module \  		# 启用 XQUIC 模块
--with-xquic-inc=/usr/local/xquic/include \ 			# XQUIC 头文件路径
--with-xquic-lib=/usr/local/xquic/lib \					# XQUIC 库路径
--with-xquic-link=/usr/local/xquic/lib 					# 链接时使用库路径

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# 示例配置
server {
    listen 443 ssl http2;  # 保留 TLS/HTTP2
    listen 443 quic reuseport;  # 开启 QUIC/HTTP3

    ssl_certificate     /etc/nginx/ssl/server.crt;
    ssl_certificate_key /etc/nginx/ssl/server.key;

    # QUIC 支持
    ssl_protocols TLSv1.3;
    ssl_prefer_server_ciphers off;
    ssl_session_cache shared:SSL:50m;
	ssl_session_timeout 10m;

    # HTTP3/QUIC 配置
    quic_idle_timeout 600s;
    quic_buffer_size 1452;   # 一般根据 MTU 调整
    quic_max_streams 100; 	 # 最大并发流数，可根据业务调整

    # HTTP3 静态资源目录
    location / {
        root /usr/share/nginx/html;
        index index.html;
    }
}

Brotli 压缩

获取 Brotli 模块

1
2
3
4
cd /usr/local/src
git clone https://github.com/google/ngx_brotli.git
cd ngx_brotli
git submodule update --init

编译 tengine

1
2
3
4
./configure \
--add-dynamic-module=/usr/local/src/ngx_brotli

make && make install

启用模块

load_module 必须在最前面

1
2
3
# 要加到 user 之前
load_module modules/ngx_http_brotli_filter_module.so;
load_module modules/ngx_http_brotli_static_module.so;

http 块开启 brotli

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
http {
    brotli on;
    brotli_comp_level 6;     # 推荐 4~6，生产平衡点
    brotli_buffers 16 8k;

    brotli_types
        text/plain
        text/css
        application/json
        application/javascript
        text/javascript
        text/xml
        application/xml
        application/xml+rss
        image/svg+xml
        font/ttf
        font/otf
        application/vnd.ms-fontobject;

    # gzip 兜底
    gzip on;
    gzip_comp_level 5;
    gzip_types text/plain text/css application/json application/javascript;
}

验证

1
2
3
4
curl -I -H "Accept-Encoding: br" https://your.domain

响应应包含
Content-Encoding: br
